Description

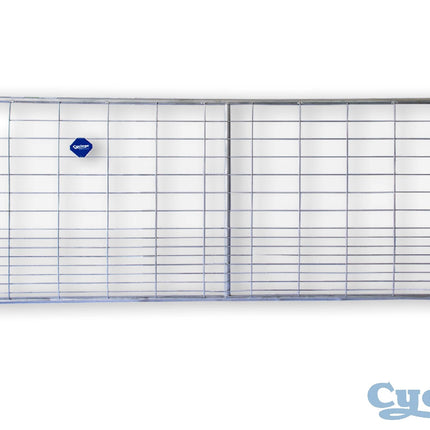

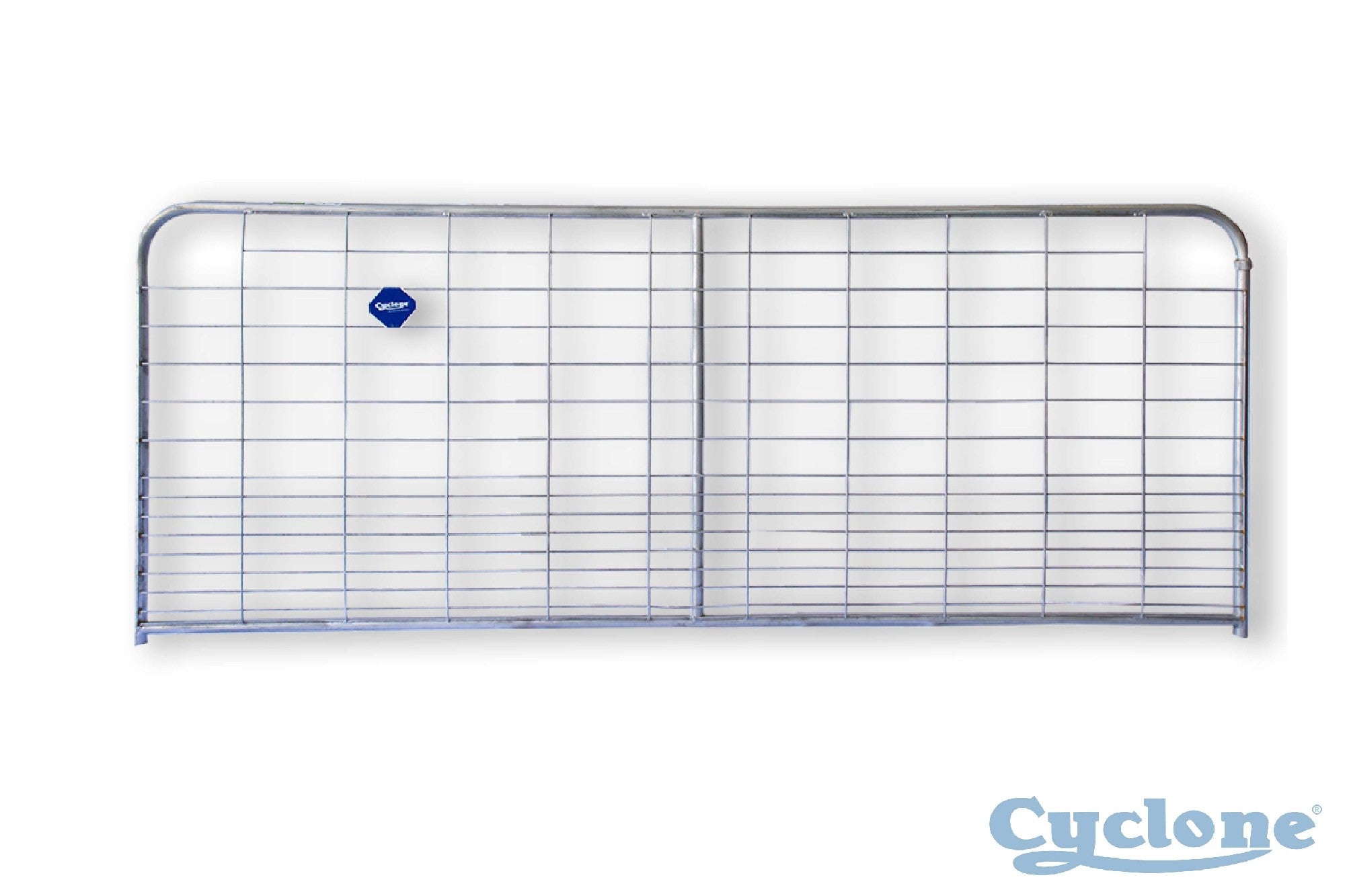

Welded mesh insert features graduated horizontal wires which increase the density of the strands in the lower part of the gate.
- Produced from 25NB hot dipped galvanised pipe, with a wall thickness of 2mm, and mesh spacing graduating from 32mm at the bottom of the gate, to a maximum of 100mm at the upper part of the gate (5mm wire thickness).
- Welded collar attached at hinge end to increase compatibilty with a broader range of gate hardware, including brooker hinges. The pipe used in the gate frame and brace is hot dipped galvanised both inside and out providing corrosion resistance.
- The pipe used in the gate fram and brace is hot dipped galvanised both inside and out providing corrosion resistance.
- Each MOQ packed with both left and right hand side configurations and palletised for safer and easier handling.
Full notch weld construction.
